High-Speed Doors - with FU control as standard

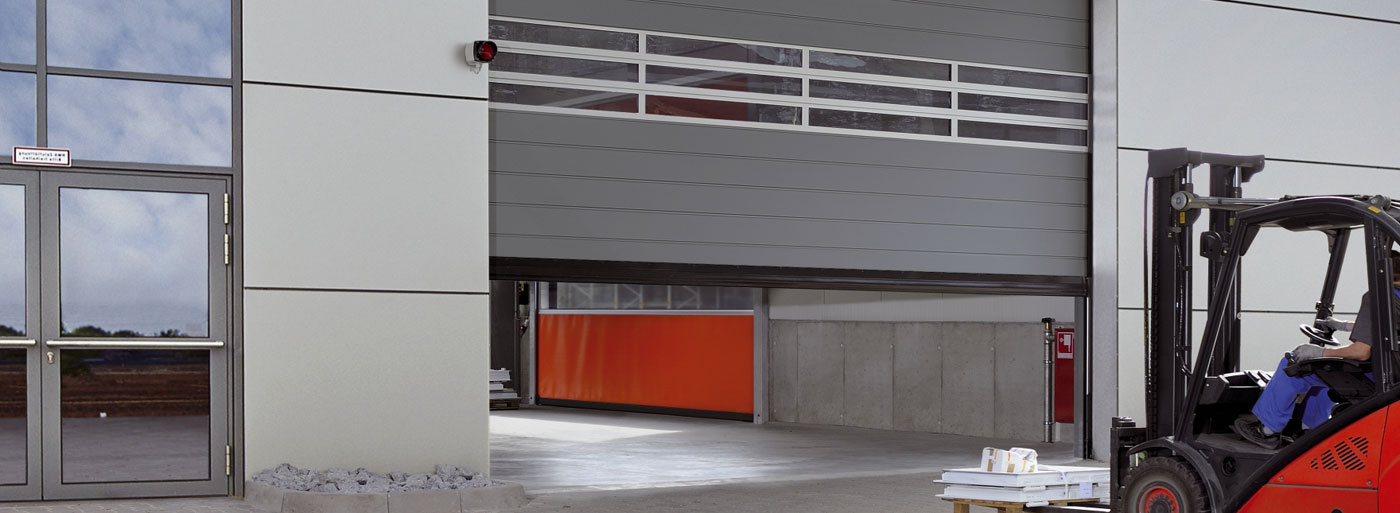

Hörmann high speed doors are used inside and outside. High speed doors optimise the flow of traffic, improve room conditions and save energy. With the ability to close your door rapidly, you can minimise the temperature fluctuations which inevitably result from having an open gap between one area and another – this is true whether you want to keep the area in question cold or warm.
The Hörmann range includes both vertically and horizontally opening transparent doors with a flexible curtain. They are also available in combination with sectional doors and rolling shutters, as well as with powerful, service-friendly spiral doors with smooth aluminium profiles.
All Hörmann high speed doors come with a powerful frequency converter control (FU) as standard. This considerably extends the lifespan of the door’s working parts.

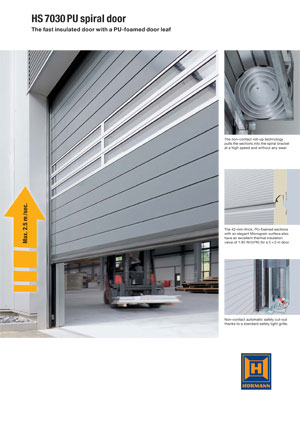

For more information, please see the adjacent catalogue as well as the Technical manual.
Good reasons to try Hörmann high-speed doors
Non-contact safety

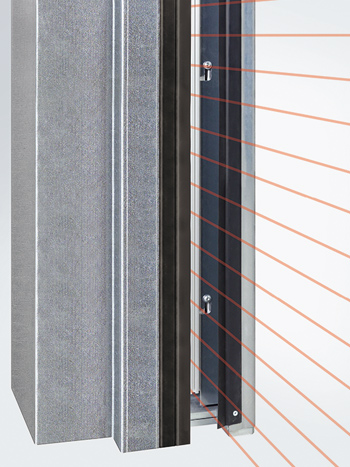

Safety light grilles integrated into the side elements monitor the closing zone of the door leaf up to a height of 2500 mm. The safety light grilles ensure compliance with safety requirements in accordance with DIN EN 13241-1. This does away with the need for additional installations on the door (e.g. closing edge safety device, photocell). Profit from this high level of safety with a high-speed door that is exceptionally easy to fit and service.
Long service life and high efficiency as standard
The frequency converter control takes stress off the entire door mechanism, guaranteeing nearly wear-free, quiet door travel. The high opening and closing speeds optimise your operations and reduce heat losses. In addition, they relieve the entire door mechanism through the smooth starting and braking action which considerably extends the service life of the door. For heavy, insulated doors the door travel is supported by springs, and for high-speed sectional doors with H and V track applications by wear-free counter weights.
Uniformly foamed steel sections
Hot-galvanized, double-skinned sections with PU rigid foam infill provide for particularly high thermal insulation, resulting in a UD value of 1.95 W/ (m²·K)*. The doors are supplied as standard in White aluminium (RAL 9006). The exterior is characterised by the fine Micrograin lines, on the interior the sections are Stucco-textured.
* For 25 m² door surface
Increased thermal insulation thanks to ThermoFrame
Well-insulated high-speed doors are essential in heated halls. The ThermoFrame separates the side element from the building structure. The thermal break along with additional seals improves thermal insulation by up to 15 % and is easy and quick to fit. The ThermoFrame can be optionally ordered for doors with 42-mm and 67-mm-thick sections. It is already included in the scope of delivery for Iso Speed Cold 100 doors.
Optional glazing
Duratec glazing guarantees maximum scratch resistance despite heavy use in rough industrial environments. The special surface coating protects the pane from scratches and damage caused by cleaning. For 67 mm insulated doors, you receive the aluminium glazing frame with thermal break with triple glazings. We deliver 42 mm insulated doors with double glazing.
